ETSS Environmental Chambers and Rooms

ETSS has nearly 30 years of experience in environmental testing. We offer both standardized test chambers and software as well as customized solutions. We design and manufacture various test chambers and rooms ranging from under one cubic meter to up to 40 m3. Environmental chambers and rooms are used for, among other things, material drying, weather testing, aging and stress tests, cell culture, and plant and pharmaceutical research.

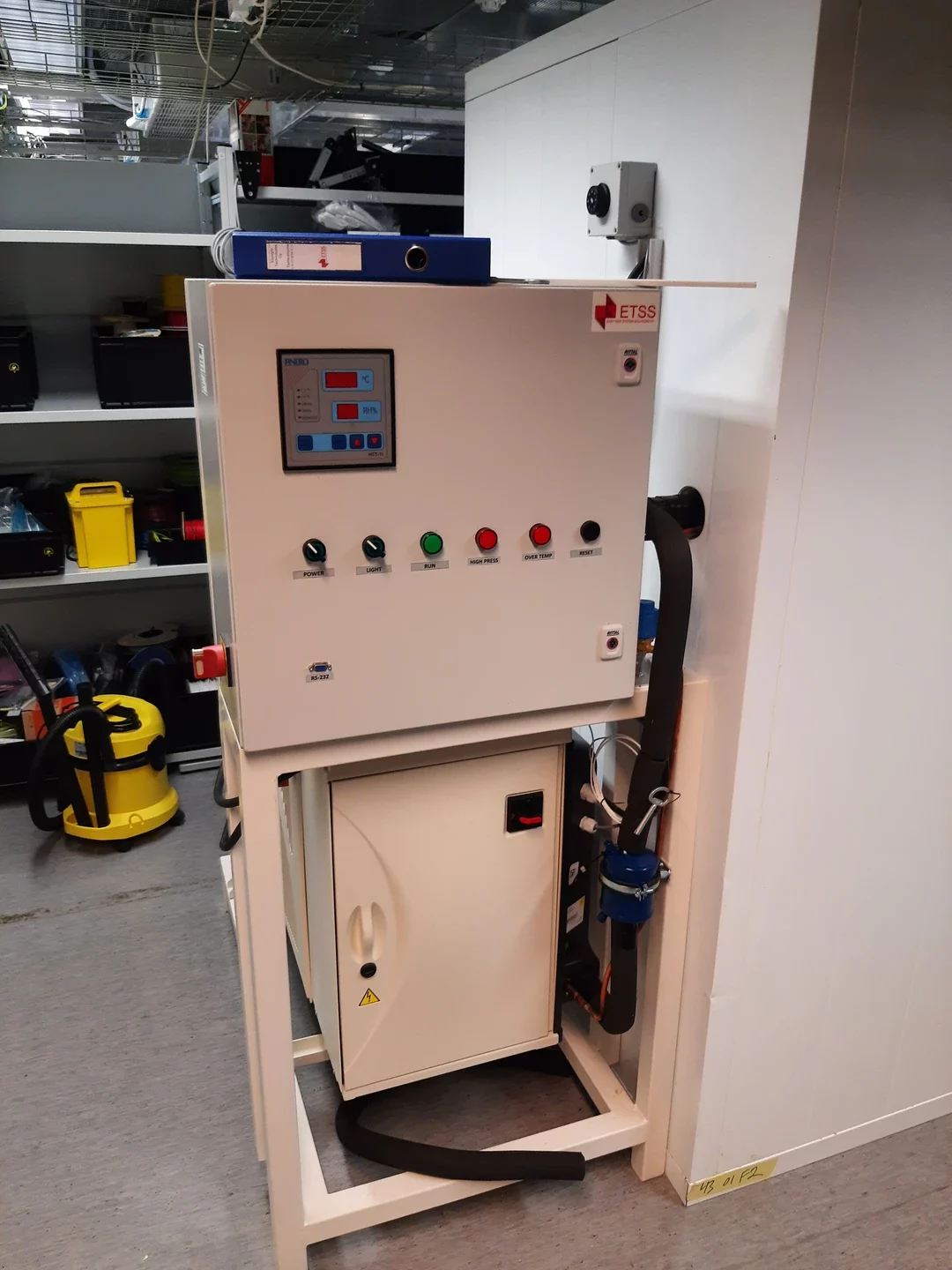

Control of the test chambers and rooms is handled by Finero’s microprocessor-based controller HCT-11. The controller is an easy-to-use standard temperature and humidity controller and includes an interface for PC control. Control can also be implemented with a manual thermostat or programmable logic. With the TCC-1000 test software, multiple chambers can be controlled with a single PC.

With our end-to-end service you get an optimized, reliable, and cost-effective solution for your product. We design, consult, manufacture, install, and service the products as desired. We also perform annual calibration of environmental chambers and rooms at the customer’s site.

Heating and vacuum chambers

Suitable for thermal aging, drying, and drying in an oxygen-free environment – for example in the pharmaceutical, chemical, metal, food, and electronics industries.

Heating ovens and temperature exposure chambers

Ovens are used for drying and thermal aging in, among others, the pharmaceutical, electronics, food, and metal industries.

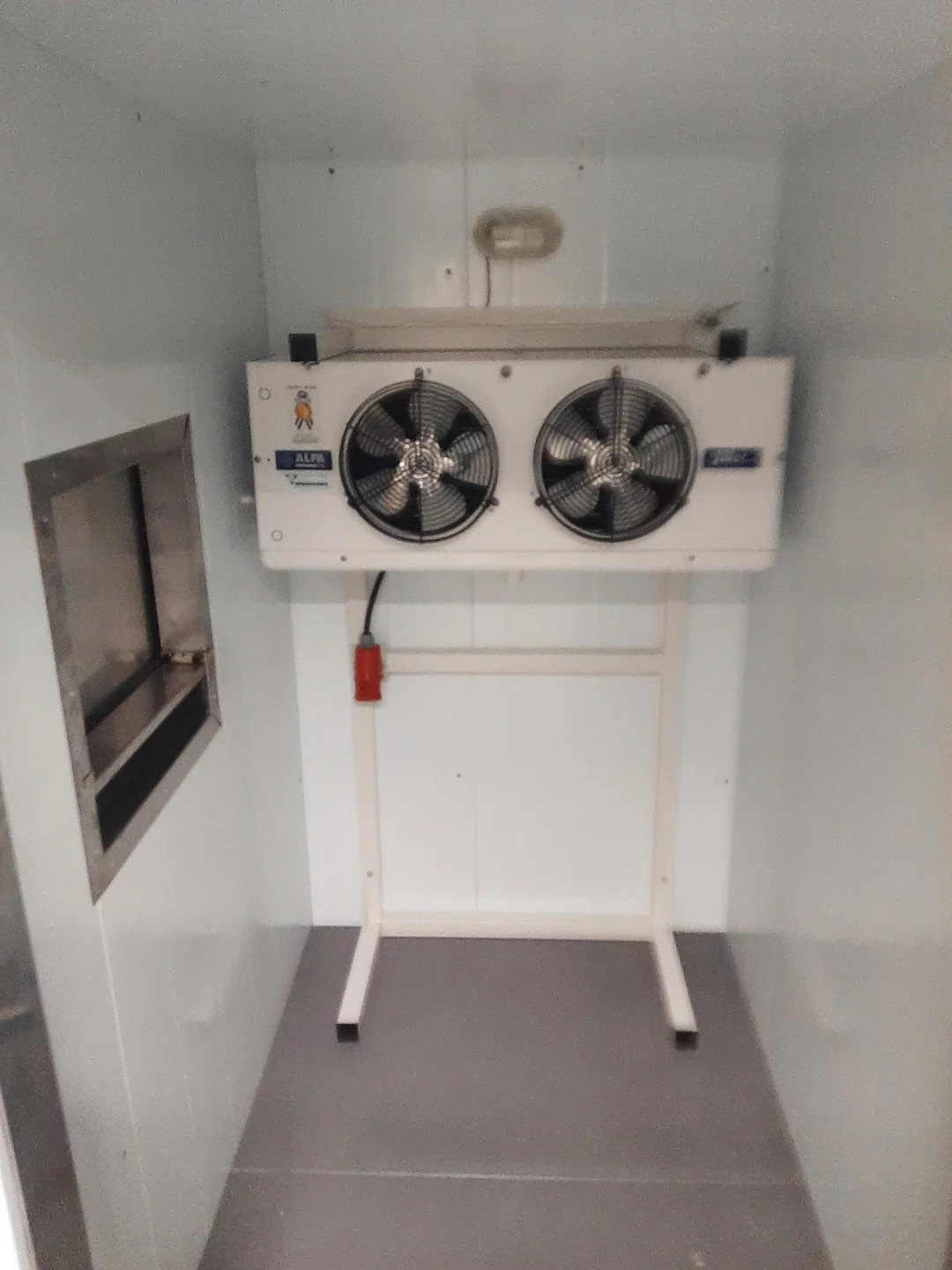

Temperature and humidity test chambers and walk-in rooms

ETSS test chambers are designed for product testing under varying temperature and humidity conditions. A wide test range and precise environmental control are achieved with programmable logic or Finero’s controller. Various accessories are available for chambers and rooms, such as UV lights, air conditioning, power supply, and test adapters.

Technical specifications of ETSS environmental test chambers and rooms

Internal volumes

  • Chambers: 10–1000 liters
  • Rooms: 1…40 m³; floor dimensions starting from 1 m × 1.5 m

Temperature and humidity

  • Temperature ranges: −20 °C…+70 °C
  • Temperature change rates: 0.5 °C…2 °C / minute
  • Humidity ranges: 10…95 % RH within +15…+70 °C
  • Accuracies: temperature ±1 °C, humidity ±5 % RH

Accessories

  • Wheels
  • Feedthroughs
  • Door windows
  • Shelves
